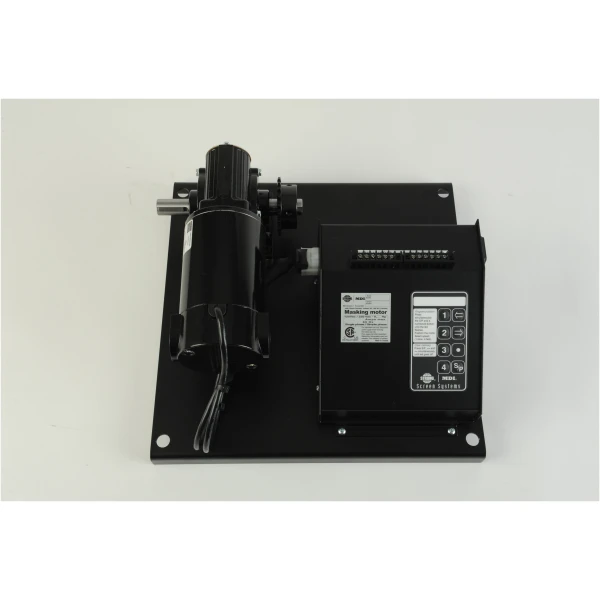

MDI Masking Motor K1/4-S

Description

POWER
100-125 VAC 60Hz
200-250 VAC 50/60Hz
2,5 A max.

MOTOR
¼ HP permanent
magnet DC gear motor

TORQUE
K 1/4-GD : 12,3 N.M.
torque at 62 RPM
23 kg (50 lb)
at 0,08-0,32 m/sec.
(22-110 FPM)
160 kg (350 lb) estimated
draw weight
9,1 m (30 ft) capacity
K1/4-S, K1/4-RD : 12,3 N.M.
torque at 62 RPM
41 kg (90 lb)
at 0,04-0,2 m/sec.
with #35B21 sprocket
109 lb-in. torque
at 10-40 FPM
with #35B21 sprocket

AXIAL LOAD
40,8 kg (90 lb) max.

PRECISION
± 5° shaft rotation
at rated load

PRESETS / SPEEDS
10 preset position
4 speeds available

SYSTEM LIMITS
180 output
shaft rotations

DRIVE
Microprocessor
controlled regenerative
SCR drive
with dynamic brake

CONTROL VOLTAGE
12-20 volts DC,
100 mA

MDI PN: MDI K1/4-S
